High Directivity – CP0402P (Tight Tolerance)


Features & Benefits
  • Self alignment during reflow
  • Excellent solderability
  • Low parasitics
  • Better heat dissipation
  • Power rating 3W RF continuous
  • Low profile
  • High directivity
  • LGA termination
Typical Applications
  • Wireless communications
  • Wireless LANs
  • GPS
  • WiMAX

The CP0402P Series High Directivity, Tight Coupling Tolerance LGA Coupler is based on the proprietary RFAP Thin-Film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly. The ITF Coupler is offered in a variety of frequency bands compatible with various types of high frequency wireless systems.

Datasheet / Catalogs

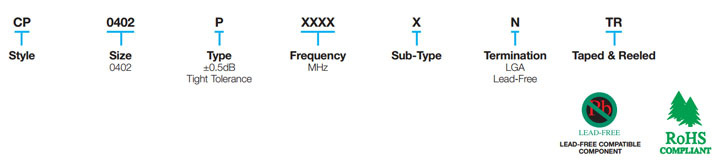

Part Number Information
Part Number Information

CP0402 Tight Tolerance
» Click to View

Design Tools
S2P Files – Click to Download
Libraries – Click to Download

AVX also works with several of the most popular software vendors to ensure our products are up to date in their software, and are constantly working with new vendors to ensure that they have the most up-to-date AVX libraries. These libraries are available below and can be added to your software.

Software – Click to Download
Environmental / Compliance Documents
Environmental / Compliance Documents

High Directivity – CP0402P | Environmental Documentation
